How can I create a Flight Plan?

How can I create a Flight Plan?

To create a new Flight Plan, click on the "+" icon. This will lead you to the subsequent screen; proceed by following the steps outlined in the images and tables below:

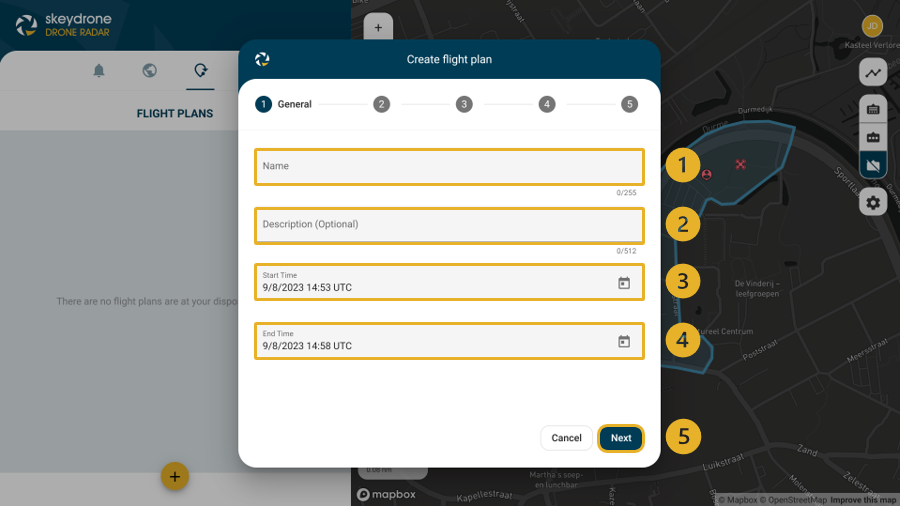

STEP 1 - Enter General Flight Plan information
  1. Name: enter the name of the Flight Plan you want to create
  2. Description (optional)
  3. Start Time
  4. End Time
  5. Next: click on next to go to the next page once finished

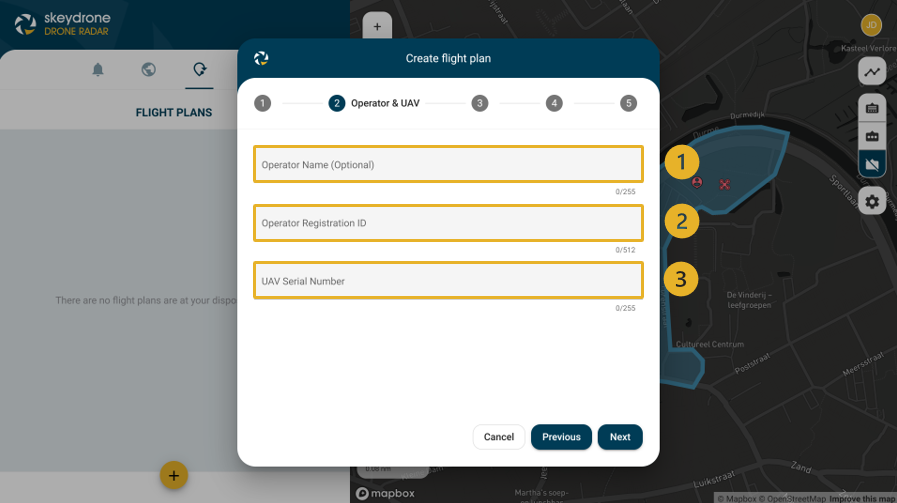

STEP 2 - Enter operator information
  1. Operator Name (optional)
  2. Operator Registration ID: 32-character long string
  3. UAV Serial Number: the official serial number of the drone conforming the flight plan
You can fill in either point 2 or point 3; filling in both fields is not mandatory, just one of them is required.

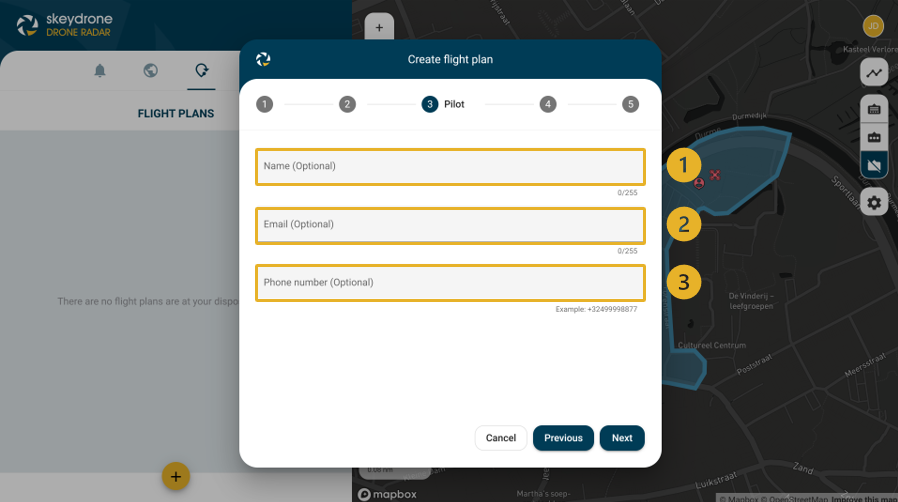

STEP 3 - Enter pilot information
  1. Pilot Name (optional)
  2. Pilot Email
  3. Pilot Phone number

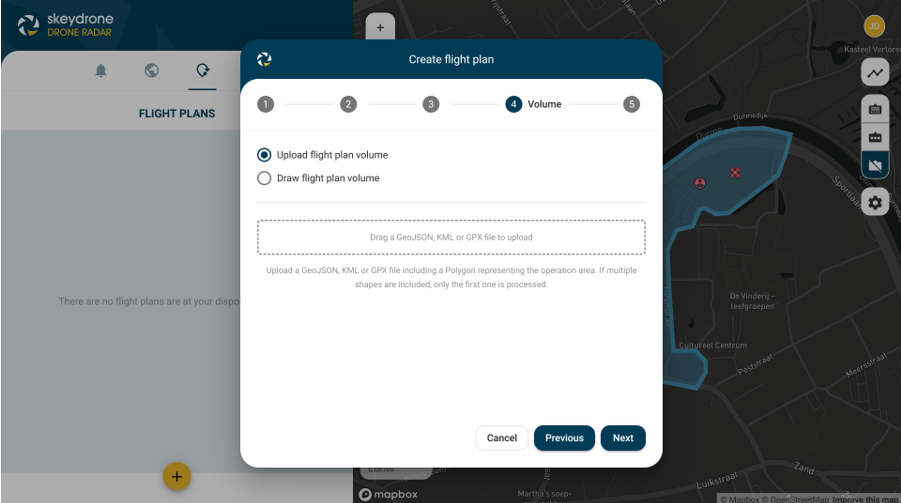

STEP 4 - Upload or draw a flight plan
Upload or draw flight plan volume.

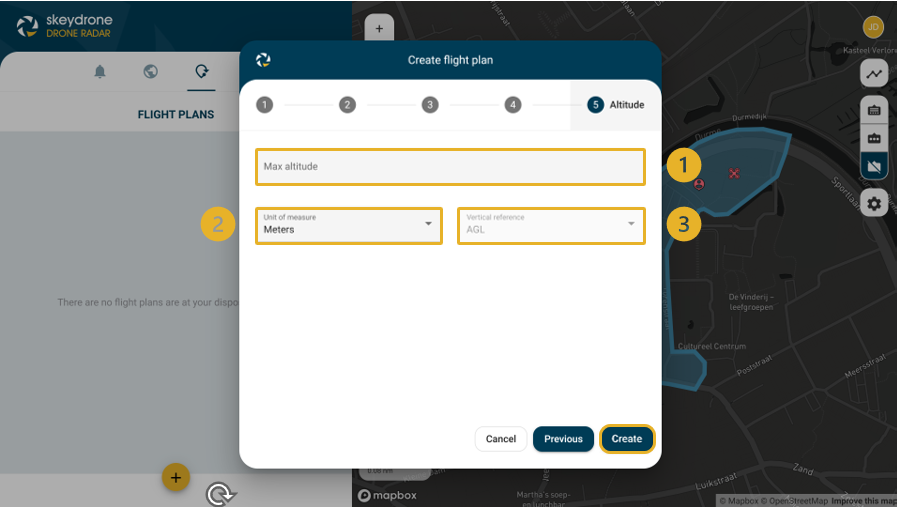

STEP 5 - Enter altitude information
  1. Maximum altitude
  2. Unit of measure: meters or feet
  3. Vertical reference: AGL or AMSL
